Product Description

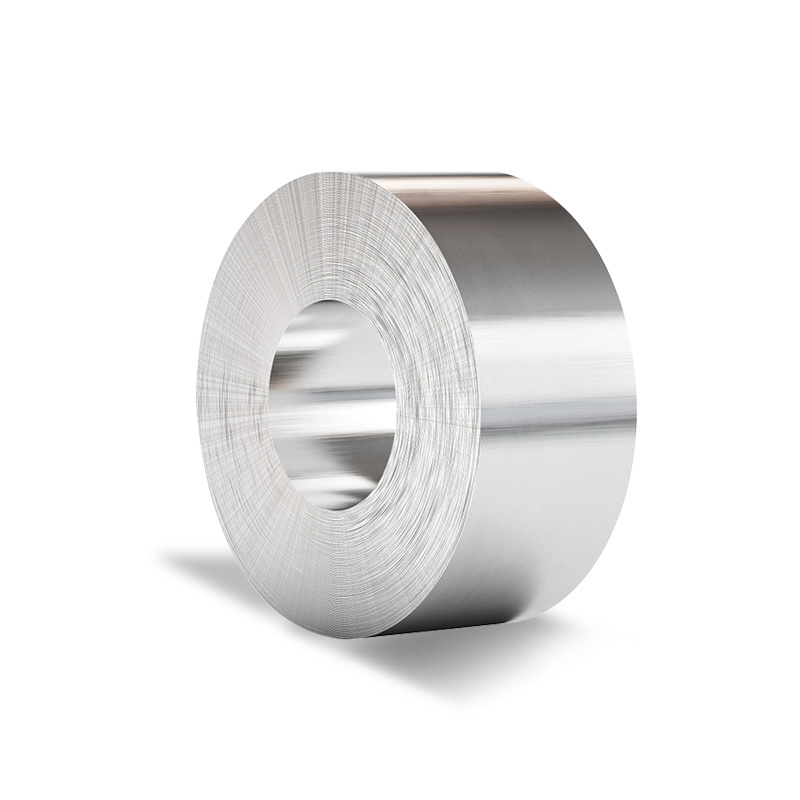

50W350/50W600 CRNGO Power Generation Description
High-grade CRNGO such as 50W350 is essential for large power generation units, while the wind power industry often opts for grades like 50W600, reflecting the specific needs of each energy sector.
Cold rolled non oriented silicon steel sheet is mainly used for generator manufacturing, so it is also called cold rolled motor silicon steel. Its silicon content is 0.5%-3.0%, which is cold rolled to the thickness of the finished product. The supply state is mostly 0.35mm and 0.5mm thick steel strips. The BS of cold-rolled non oriented silicon steel is higher than that of oriented silicon steel; compared with hot-rolled silicon steel, the thickness of cold-rolled non oriented silicon steel is uniform, the dimensional accuracy is high, and the surface is smooth, which improves the filling coefficient and the magnetic properties of the material.
Mechanical Properties
| Grade | Yield strength | Tensile strength | Elongation% | Hardness | Theoretical density(kg/dm³) | Min.Induction(T) 50Hz B5000 | Min.Number of bends | Min.Lamination factor | |||
| 35w230 | 415 | 435 | 520 | 540 | 16 | 18 | 195 | 7.60 | 1.62 | 3 | 96.0 |
| 35w250 | 415 | 435 | 520 | 540 | 16 | 18 | 195 | 7.60 | 1.62 | 3 | |
| 35w270 | 415 | 435 | 520 | 540 | 16 | 18 | 195 | 7.60 | 1.62 | 3 | |
| 35w300 | 395 | 410 | 510 | 530 | 25 | 26 | 185 | 7.65 | 1.62 | 6 | |
| 35w360 | 380 | 400 | 490 | 505 | 27 | 29 | 170 | 7.65 | 1.63 | 6 | |
| 35w440 | 270 | 280 | 415 | 435 | 30 | 32 | 140 | 7.70 | 1.65 | 6 | |
| 50w250 | 420 | 440 | 520 | 540 | 16 | 18 | 195 | 7.60 | 1.62 | 3 | 97.0 |
| 50w270 | 420 | 440 | 520 | 540 | 16 | 17 | 195 | 7.60 | 1.62 | 3 | |
| 50w290 | 420 | 440 | 520 | 540 | 16 | 18 | 195 | 7.60 | 1.62 | 3 | |
| 50w310 | 390 | 410 | 510 | 530 | 25 | 27 | 185 | 7.60 | 1.62 | 3 | |
| 50w350 | 390 | 410 | 510 | 530 | 25 | 27 | 185 | 7.65 | 1.62 | 6 | |
| 50w400 | 380 | 400 | 490 | 510 | 27 | 30 | 170 | 7.65 | 1.64 | 6 | |
| 50w470 | 265 | 275 | 420 | 440 | 30 | 32 | 140 | 7.70 | 1.70 | 10 | |
| 50w600 | 280 | 295 | 410 | 425 | 40 | 42 | 130 | 7.75 | 1.67 | 12 | 97.5 |
| 50w800 | 255 | 265 | 380 | 390 | 45 | 46 | 105 | 7.80 | 1.70 | 15 | |
| 50w1300 | 230 | 240 | 350 | 360 | 50 | 50 | 100 | 7.85 | 1.74 | 15 | |
| 50wh470 | 300 | 315 | 440 | 452 | 33 | 34 | 150 | 7.70 | 1.71 | 8 | 97.0 |
| 50wh600 | 250 | 260 | 420 | 435 | 38 | 39 | 135 | 7.75 | 1.72 | 10 | 97.0 |
| 20wtg1500 | 400 | 415 | 510 | 525 | 22 | 21 | 175 | 7.65 | 1.40(B2000) | - | 93.0 |
| 30wgp1600 | 420 | 430 | 520 | 530 | 16 | 18 | 190 | 7.60 | 1.62 | 3 | 95.5 |
| 30wgp1700 | 395 | 405 | 520 | 530 | 16 | 18 | 190 | 7.60 | 1.62 | 5 | 95.5 |
Scope of Application
①Transformer: high end transformer: 750kV, 1000kV
②Medium and low-end Transformers: 220-500kV, 110-200kv, less than 110kV
③Energy saving transformer of various grades: 0.18-30mm
| Varieties | High Grade | Middle Grade | Low Grade |
| Medium and small power transformer | ★ | - | - |
| Voltage regulator.Reactor and magnetic amplifier | ★ | - | - |
| lnductor | ★ | - | - |
| TV&Radio transformer | - | ★ | ★ |
| Welding transformer | ★ | ★ | - |
| Large&medium-scale motor | ★ | ★ | - |
| Smallµ-scale motor | ★ | ★ | ★ |
| Sealed motor | ★ | ★ | - |
| lntermit motor | - | ★ | - |
| Medium-frequency motor and driven motor | ★ | - | - |
| Compressor motor | ★ | ★ | ★ |
| Rectifier | ★ | ★ | ★ |
| Choke coil | - | ★ | - |
| Relay and electromagnetic switch | ★ | ★ | - |
Brand Comparison
| Thickness | GB/T2521-1996 | JIS C2552-86 | ASTM A677M-89 | EN10106 | ||||
| mm | Grade | P15/50 | Grade | W15/50 | Grade | P1.5/50 | Grade | P1.5/50 |
| W/kg | W/kg | W/kg | W/kg | |||||
| 0.35 | 35W230 | 2.3 | 35A230 | 2.3 | 36F320M | 2.53 | M235-35A | 2.35 |
| 35W250 | 2.5 | 35A250 | 2.5 | 36F348M | 2.76 | M250-35A | 2.5 | |
| 35W270 | 2.7 | 35A270 | 2.7 | 36F370M | 2.93 | M270-35A | 2.7 | |
| 35W300 | 3 | 35A300 | 3 | 36F419M | 3.32 | M300-35A | 3 | |
| 35W330 | 3.3 | 35A360 | 3.6 | M330-35A | 3.3 | |||
| 35W360 | 3.6 | |||||||
| 35W400 | 4 | |||||||
| 35W440 | 4.4 | 35A440 | 4.4 | |||||
| 0.5 | 50W230 | 2.3 | 50A230 | 2.3 | 47F370M | 2.93 | ||
| 50W250 | 2.5 | 50A250 | 2.5 | 47F384M | 3.04 | M250-50A | 2.5 | |
| 50W270 | 2.7 | 50A270 | 2.7 | 47F403M | 3.23 | M270-50A | 2.7 | |
| 50W290 | 2.9 | 50A290 | 2.9 | 47F452M | 3.57 | M290-50A | 2.9 | |
| 50W310 | 3.1 | 50A310 | 3.1 | 47F507M | 4.01 | M310-50A | 3.1 | |
| 50W330 | 3.3 | 47F617M | 4.89 | M330-50A | 3.3 | |||
| 50W350 | 3.5 | 50A350 | 3.5 | 47F672M | 5.32 | M350-50A | 3.5 | |
| 50W400 | 4 | 50A400 | 4 | 6.93 | M400-50A | 4 | ||
| 50W470 | 4.7 | 50A470 | 4.7 | 47F332M | 7.86 | M470-50A | 4.7 | |
| 50W540 | 5.4 | 47F992M | M530-50A | 5.3 | ||||
| 50W600 | 6 | 50A600 | 6 | M600-50A | 6 | |||
| 50W700 | 7 | 50A700 | 7 | M700-50A | 7 | |||
| 50W800 | 8 | 50A800 | 8 | M800-50A | 8 | |||
| 50W1000 | 10 | 50A1000 | 10 | M940-50A | 9.4 | |||
| 0.65 | 65W600 | 6 | 65A800 | 8 | 64F705M | 5.59 | M310-65A | 3.1 |
| 65W700 | 7 | 65A1000 | 10 | 64F882M | 6.98 | M330-65A | 3.3 | |
| 65W800 | 8 | 65A1300 | 13 | M350-65A | 3.5 | |||
| 65W1000 | 10 | 65A1600 | 16 | 64F121M | 9.6 | M400-65A | 4 | |
| 65W1300 | 13 | M470-65A | 4.7 | |||||
| 65W1600 | 16 | M530-65A | 5.3 | |||||
| M600-65A | 6 | |||||||
| M700-65A | 7 | |||||||
| M800-65A | 8 | |||||||
| M1000-65A | 10 | |||||||
Factory
Factory
Factory
Factory
Shipping
Shipping Photos
Shipping Photos
Shipping Photos
Faq
Are you a manufacturer?
We are a manufacturer and trader in one.
Can we visit the factory?
Customers are welcome to visit the factory.
How are the goods purchased shipped?
Export standard packaging.
What is the delivery time?
Depending on the quantity purchased, the usual delivery time is 7-12 days.
Do we have access to samples? What are the costs?
Samples are supported, depending on stock availability a sample fee is charged, if a sample fee is charged we will refund the sample fee when the customer orders the main goods.
How do we get a quote for a product?
Please send me the name, size, quantity and packaging requirements of the product you wish to order and we will then provide you with the most accurate and favourable price.
